The schematic diagram consists of idealized circuit elements each of which represents some property of the actual circuit. Figure 1.1 shows some common circuit elements encountered in DC circuits. A two-terminal network is a circuit that has only two points of interest, say A and B.

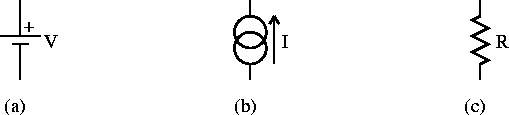

Figure 1.1: Common circuit elements encountered in
DC circuits: a) ideal voltage source, b) ideal current source and c)
resistor.
