Direct InkJet PCB Resist Printing

Custom Epson Based Flatbed

By Volkan Sahin

My major aim was to design a hardware/SW to implement a generic printer device. I planed to use inkjet head as an actuator. Later the same structure can be used to control laser/edm head also. I used my previous experiences on Epson CX4200/4800 because of that my knowledge is limited to drive Epson piezo heads but their head is much more complicated than Xaar or Spectra heads.

As a general rule piezo heads can be used to eject different type of liquids but for Epson head never try to use anything that is solvent based. The main reason is inside the head most parts are glued together and it is very easy to damage it.

In my implementation, I try to use minimum computational power for the micro and try to do all the timing related tasks on the fpga and keep all bulk storage at the PC side.

As a summary:

• Microcontroller is used to control servo loop, USB connection, fpga SPI interface and has a minimum set of commands to interface host.
• FPGA is used to do quadrature decoding of X/Y optical encoders, X-Y position counting, X/Y start position detection, SDRAM interface, waveform DAC control, SPI interface, inkjet head interface.
• PC is used to control printer through USB. It downloads fpga data, waveform data, raster image, sets X/Y head positions.

I uploaded schematics, a figure showing implemented blocks inside fpga and Epson head driving signals

Epson inkjet head signals:

• COM: Trapezoidal drive signal 4-30Volts
• NCHG: Discharge all piezo (I don't know actual naming maybe Not CHarGe)
• CH: Increment waveform counter.
• LE: Latch enable
• CLK: Data clock (both edges used to sample data)
• Yellow(Y) Data:
• Cyan(C) Data:
• Magenta(M) Data:
• Black(K) Data

All colors data are sampled (latched) with CLK signal. In Epson head each dot is represented by 2 bits therefore if each color has a 90 nozzles it means that we need to send 180 bits, in addition to that it also requires a waveform select bits in my case it was 32 bits. So it requires 212 bits data transfer for per 90 nozzles.

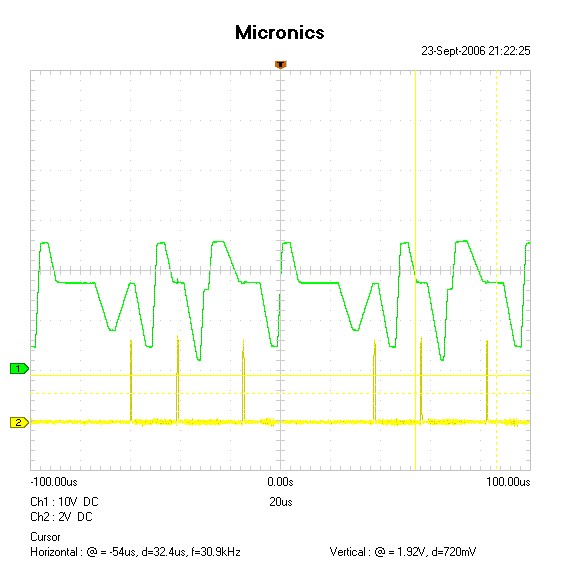

Common and CH signals

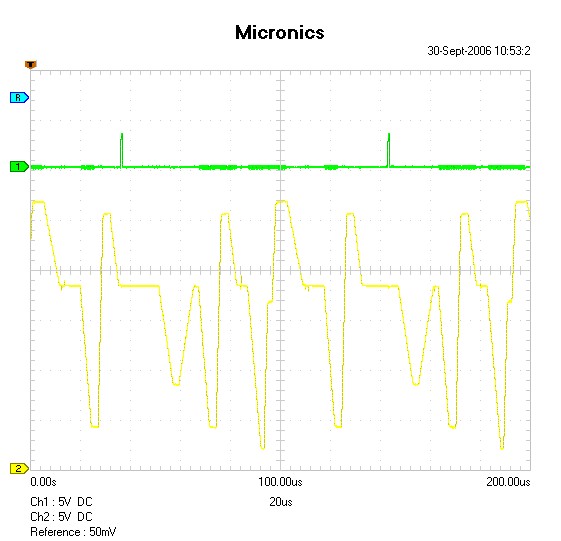

Common and LATCH (LE) signals

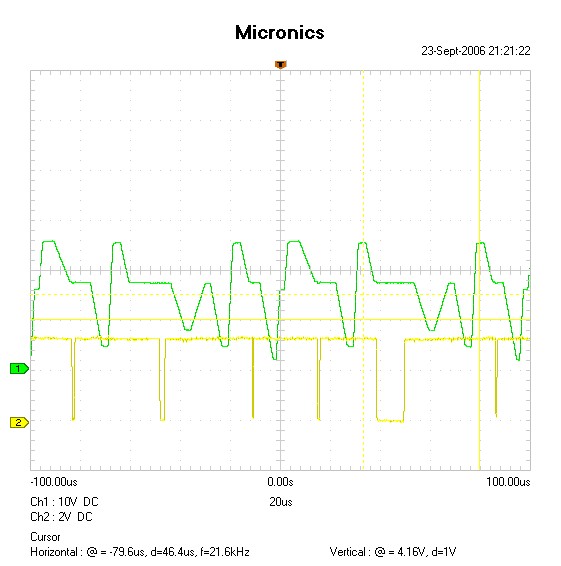

Common and NCHG signals

2 bits are used to select a different drop size for each dot. For example:

• 00 selects waveform 5 (no print)
• 01 selects waveform 7 (Medium size dot)
• 10 selects waveform 0 (Large size dot)
• 11 selects waveform 1 (Minimum size dot)

The waveform select bits (32 in my case) is used to assign physical waveform number to 2 bits representation, so in this case we have 32 bits and maximum 4 possibility for each dot, we can select 1 out of 8(=32/4) possible waveforms for each dot. This is common for all 90 nozzles.

On X-axis I have 720 dpi linear encoder(quadrature decoding) and if assume head travels 8" in 2 seconds we have ~350 microseconds between each encoder pulse. During this time we need to download next encoder position data so our head clock period should be 3.3 microseconds maximum in the case of double edge clocking. If we double the resolution we need 1.65microseconds as a clock period.

You can find detailed information on Epson head format in US patent 6758544 B2.

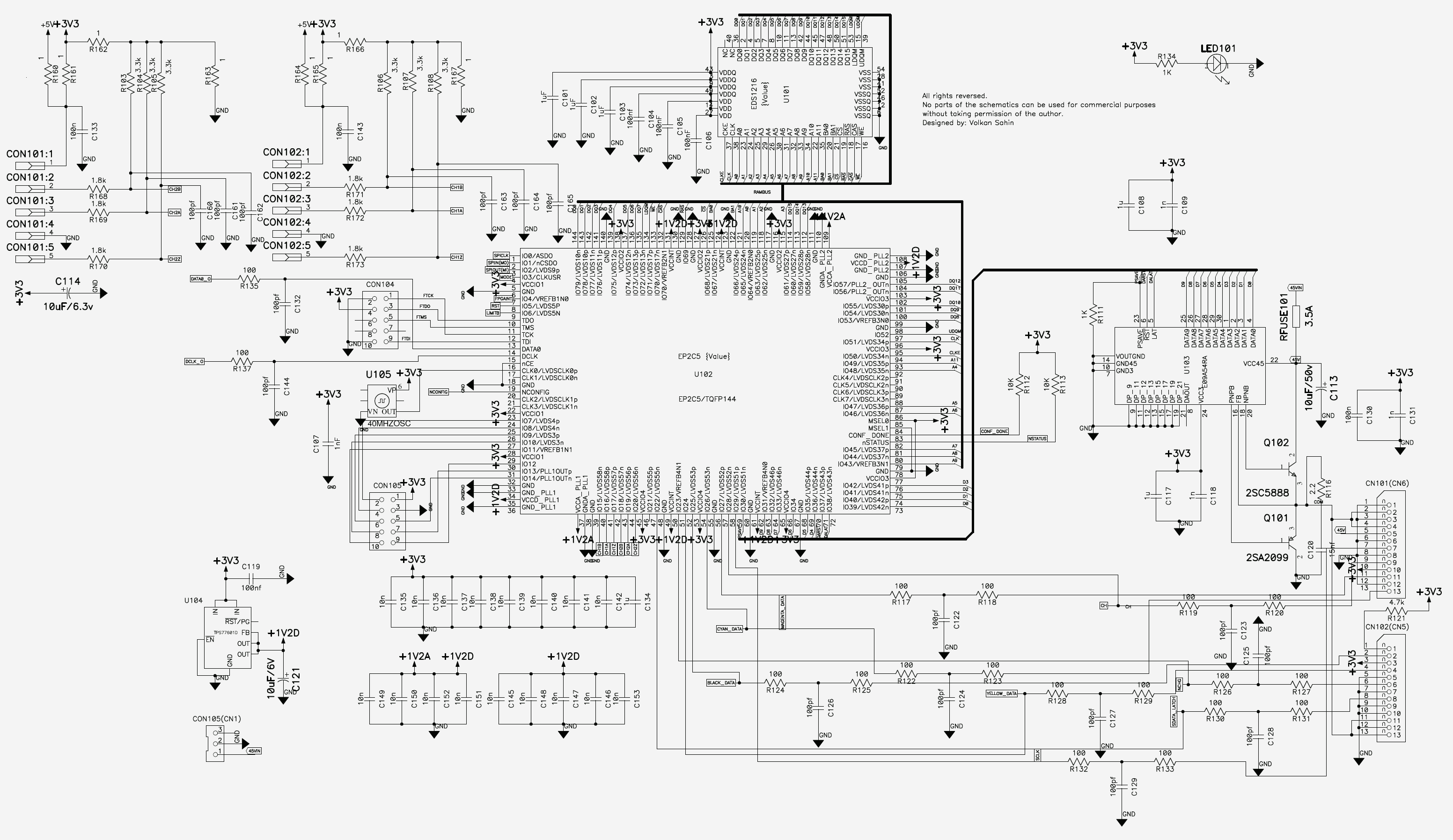

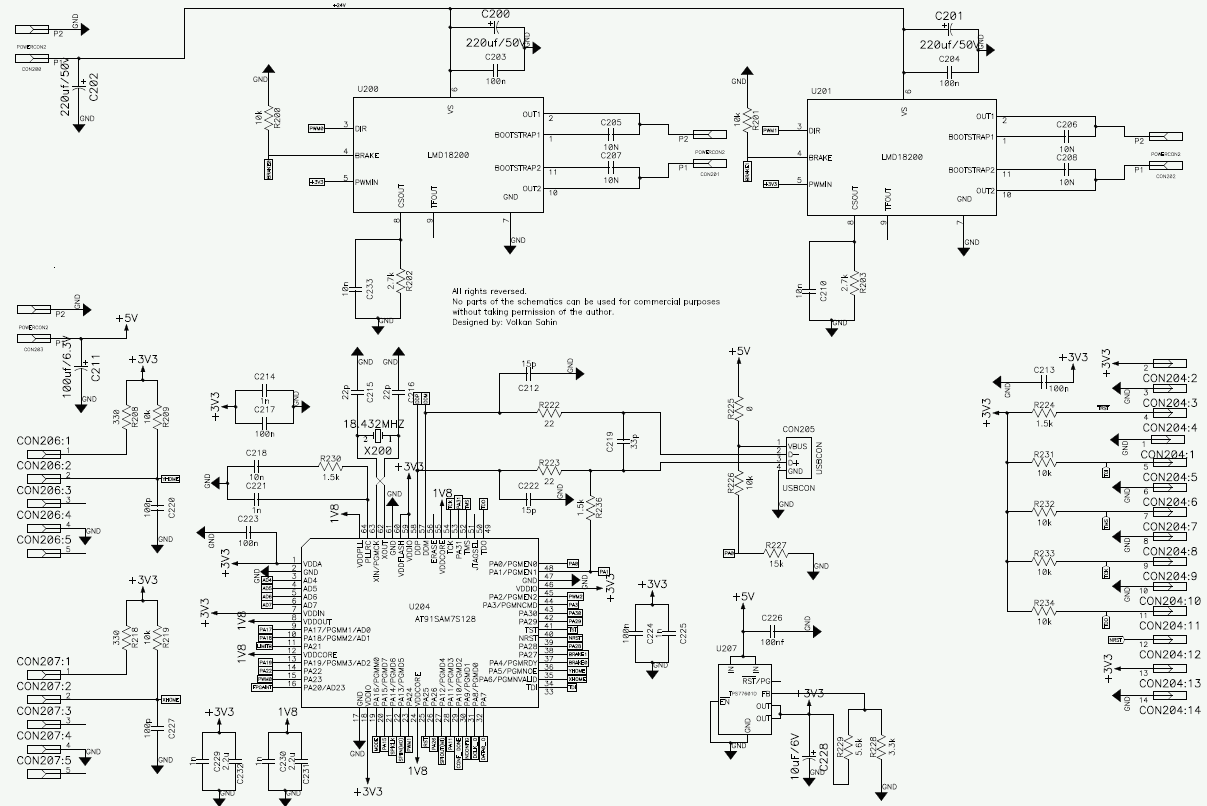

Schematics

FPGA

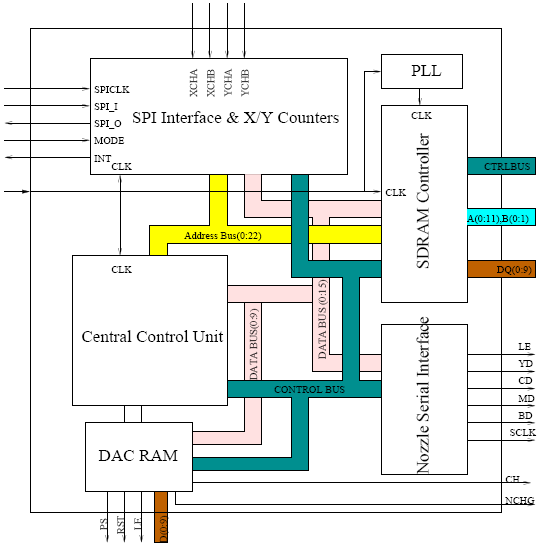

Block Diagram

Source files for the FPGA can not be released due to software patent issues. Part of the code used is closed source, and can not be shared. Without that part, the rest is not useful. If you would like to participate in producing open source code, please contact the yahoo group for inkjet PCB printing...
