Grey-water Recovery and Treatment

Most grey water systems start with a diverter valve so that wash water with bleach or other toxic chemicals can still be sent down the standard drain, and only bio-frendly soaps are diverted out to the landscaping.

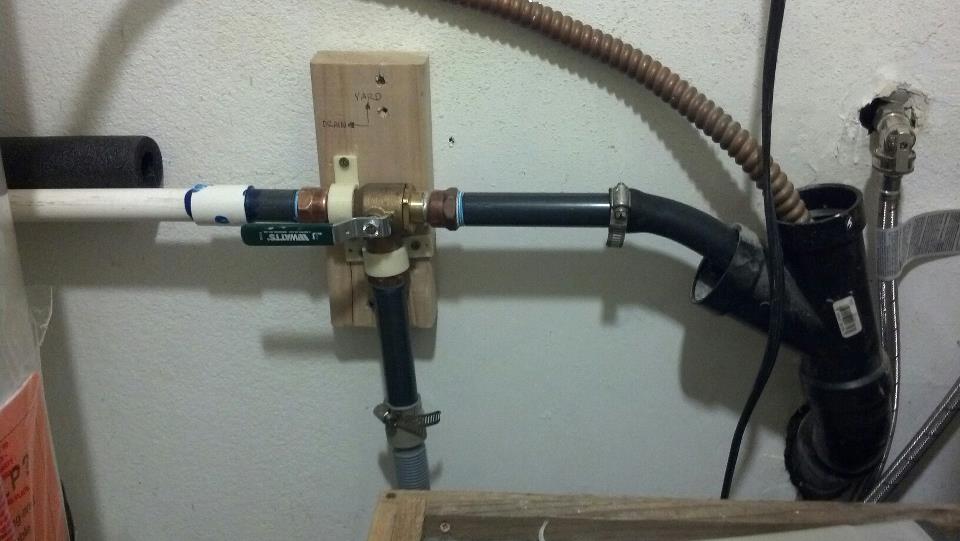

Water from the washing machine comes up into the bottom of the valve and is then directed either down the drain to the right or out to the yard on the left. Water from the washing machine comes up into the bottom of the valve and is then directed either down the drain to the right or out to the yard on the left.

The valve should be large enough that it does not restrict the flow from the waching machine, e.g. not smaller than the size of the outlet. This is a 1" 3-way valve^

Cost including adapters and fittings was around $50.

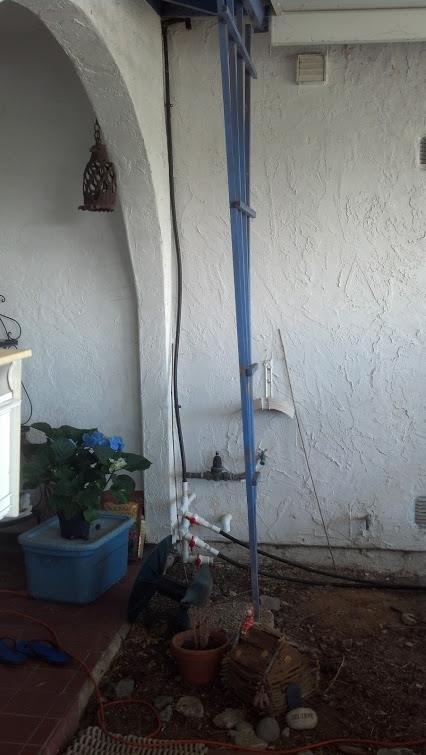

Outside the laundry room, there are 3 PVC valves which will allow the water to be directed to different areas as needed. The valves unscrew so if they get clogged up they can be cleared.

The tall vertical tube is a vacuum break which keeps the system from pulling the fill water out of the washer after it is done emptying the load. Most would use a ball valve, but that would be more expensive, prone to jamming, and this will also act as an indicator if the outlet lines are plugged up.

The cost is <~$20 for PVC fittings, valves, etc...

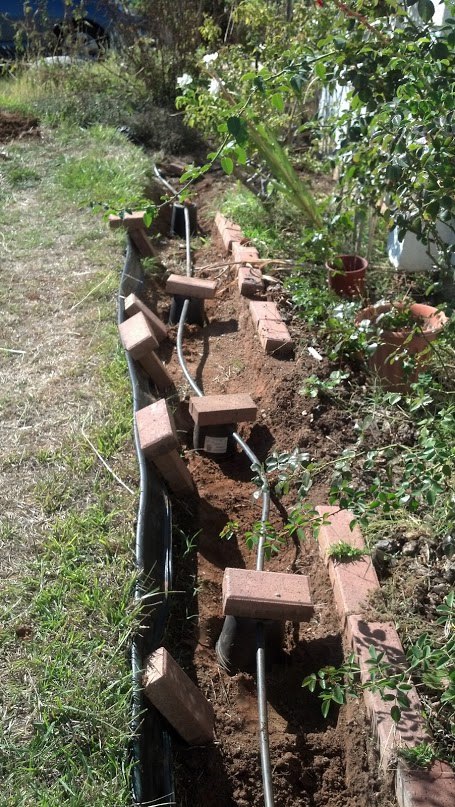

Standard drip irrigation pipe run through old plastic pots from previously purchased plants... placed upside down. This provides an air gap between the hole in the pipe and the ground so that roots will not grow up into the pipe.

The new bed will be filled in with mulch to absorb and hold the water safely. Open water is a health hazard as it can result in bacterial blooms, mosquitoes, and in any case, it will evaporate. The top layer of mulch drys out and keeps the water stored until the earth around it needs it.

Pipe was "rescued" from a prior irrigation project, so the total cost here is $0.?



Also:

In San Diego:

in the past, The permit process was compex and expensive enough that most home based gray water systems are not legal. Here is the permitting process and design criteria document published by the county prior to 2010:
http://www.co.san-diego.ca.us/deh/water/docs/lu_graywater_design_criteria.pdf However, the permitting and inspection requirements are changed so often that no one has time to figure out the red tape before the next change. The result is that not one single gray water permit was issued from 2005 to 2008 in a county that is starving for water.^ It is not known if any permits have been issued since then, but given the extreem requirements to prove that no groundwater exists on the property, it is unlikely that any home owner could afford to install a permitted system.

UPDATE: in January of 2010 the drought forced San Diego county to issue an emergency rule permitting safe residential grey water systems (from shower, bathroom sink, and clothes washing except for diapers):
http://hcd.ca.gov/codes/shl/graywater_emergency.html

Current requirements are listed here:
http://www.sandiego.gov/water/recycled/graywater.shtml

See:

See also:
