SX Specific TCP/IP I/O

For the IP2k processors, Ubicom has ip modules for Ethernet, Bluetooth, TCP/IP stack and JVM. See http://www.ubicom.com/solutions/index.html for more information...

For the SX48/52 processors, Virtual Peripherals are available:

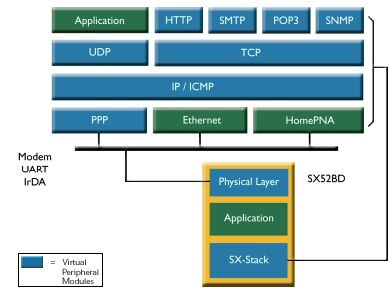

Software support includes the TCP/IP Stack and Application Layer Software: Protocols integrated into the SX controller include:

1. IP (Internet Protocol) and ICMP (Internet Control Message Protocol)
2. TCP (Transport Control Protocol, supporting two concurrent sockets)
3. UDP (User Datagram Protocol)
4. ARP (Address Resolution Protocol)
5. DHCP (Dynamic Host Control Protocol)
6. HTTP (Hypertext Transfer Protocol)
7. SMTP (Simple Mail Transfer Protocol)

Memory Usage	CODE	RAM
SX Stack
- UDP/IP/PPP	1700	61
- HTTP/TCP/IP/PPP	3200	100
- SMTP/TCP/IP/PPP	3000	90
- POP3/TCP/IP/PPP	2800	127
Physical Layer - Ethernet
- Ethernet IO	~512	16
Physical Layer - Modem
- DTMF Detection	295	52
- DTMF Generation	89	15
- FSK Detection	42	6
- FSK Generation	47	8
- Caller ID	369	70
- Ring Detect	19	3
- UART	51	10

This software is available here:

• Web: for SX52BD iSX v1.0.4, iSX v1.6.8, iSX v2.3.5, iSX v2.3.5a
  support files

• eMail: for SX52BD eSX v1.0.4,
  support files

• udp: for SX28 iSX UDP v1.0.4
  sxdemo.c Borland C++ builder 6 WIN32 code to talk to the iSX UDP

Java code that interacts with the UDPsx code in the processor is available here:

• http://www.sxlist.com/images/sxlist/UDPSX.zip

Application Notes: (Also: Related RFCs)

• AN23 "PPP/UDP Virtual Peripheral Implementation" an23_udp_ppp.pdf
• AN25 "HTTP Virtual Peripheral Implementation" an25_http.pdf
• AN26 "SMTP Virtual Peripheral Implementation" an26_smtp.pdf
• AN27 "TCP Virtual Peripheral Implementation" an27_tcp.pdf
• AN28 "POP3 (Post Office Protocol version 3) Implementation" an28_pop3.pdf
• AN35 "SX-Stack: Internet Protocols Implementation" an35.pdf
• AN37 "Web Server and Send Email Client Implementation with Ethernet as the Physical Layer" in CCS HTML or PDF
• "User’s Guide for iSX Web Server and eSX Email Appliance" isx_esx_ug.pdf

All the information about the Ethernet Demo board including the schematic is here:

• http://www.sxlist.com/images/sxlist/SXEthernetRefDesignSchem2.0.pdf

See:

• SXList Fast Embedded Ethernet Design Challenge and Contest
• How can I make an SX52 visible on the Internet and not just on the local network?
• Timothy Hosey's SX Winsock Lesson 1 and Lesson 2 "Testing Winsock (ActiveX) with the SX Ethernet Demo Board and VBScripting" and Lesson 3 "Changing the SX's Source code." See also: Microsoft Winsock
• Related RFCs

See also:

• http://www.astrosurf.com/cavadore/EthernetController/index.html An embedded multi-purpose Ethernet controller for remote data transfer
• James Dueck says: Want a low memory footprint Web user interface? Check out Art & Logic's demo.

Convert DYNDNS to HTTP request Dynamic DNS. +

Questions:

• KILLspamdipanj9 at hotmail.com asks:

  My application uses SX52BD for linking to the ethernet. The commands for performing a read of a PIC in the application are given through the web browser and the response appears again on the web browser. I need to send and recieve data directly from within PC on the ethernet bus to the application PIC rather than having to feed command through the browser/ observe the response on the browser. Kindly suggest what should be done to make this possible. Awaiting reply. Thank you.

  James Newton replies: I have two suggestions: Either A) Read the documentation and the sample source code as listed above and ask specific questions based on that or B) hire a professional consultant to do the work for you.+

  +
